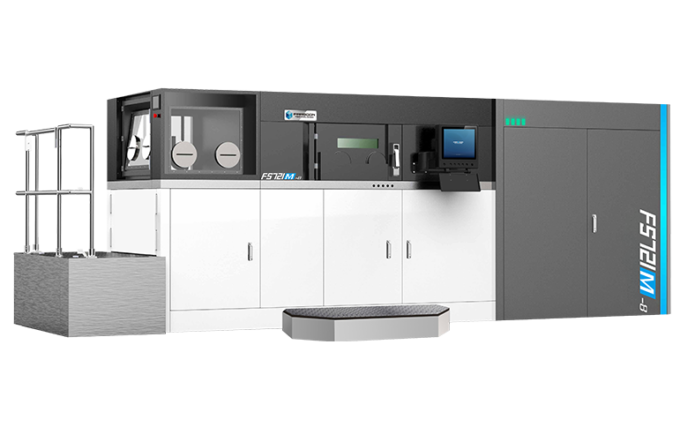

Addressing the challenges in metal manufacturing focusing around size constraints, process control, cost-efficiency and production scalability, Farsoon developed the FS721M with an industry-leading build volume of 720 x 420 x 420 mm and equipped with 2 or 4 lasers with 500W each. The FS721M 8-laser configuration is currently under Beta status. It offers many unique capabilities featuring productivity, quality, operational ease and best cost-to-performance.
Request for a Quote: [email protected]
PRODUCTION READY
Developed with an industry-leading build volume of 720×420×420mm, combined with powerful dual/quad 500W or eight 1000W
laser options, Farsoon’s FS721M is able to achieve significantly increased throughput for large-scale parts or extended industrial
series production.
PRECISION + QUALITY
Farsoon’s advanced software control and precise scanning system allows uniformed performance in multi-laser overlap zones.
Continuous powder feeding, optimized gas flow and integrated filter module allows for uniformed melting process of metal powder.
Powerful build process controls & real-time re-coating monitoring ensuring the top industrial build quality.
EASE OF USE
The FS721M’s integrated conveyer system, breakout station and advanced powder handling system allows for an efficient and safe
build cylinder transportation and fully-sealed de-powdering process. Features such as advanced calibration and electric leveling
allow for streamlined workflow. In addition like all Farsoon machines the FS721M is a truly open platform which offers the user a
high degree of control to tailor processing parameters for industrial application requirements or cost-competitive metal additive
manufacturing.
FARSOON FS721M TECHNICAL DATA
External Dimensions （L×W×H） 6610mm×1830mm×2500mm (260.2×72.0×98.4 in)
Build Cylinder Size（1 L×W×H） 720×420×420 mm ( 28.3×16.5×16.5 in ) (not including build plate thickness)
Net Weight Approx. 5000 kg (11023.1 lb)
Layer Thickness 0.02~0.1 mm ( 0.0008-0.0039 in )
Scanning Speed Max. 10.0 m/s ( 32.8 ft/s )
Laser Type
Scanner
Inert Gas Protection Argon/Nitrogen
Average Inert Gas Consumption in Process 6-8 L / min
Operating System 64 bit Windows 10
Comprehensive Software BuildStar, MakeStar®
Key Software Features Open machine key parameters, real-time build parameter modification, three-dimensional
visualization, diagnostic functions
Data File Format STL
Power Supply EUR/China: 400V±10%, 3~/N/PE, 50Hz, 32A/40A US: transformer sold with machine
Operating Ambient Temperature 22-28°C ( 71.6-82.4℉ )
Materials2 316L, TA15, Ti6Al4V, AlSi10Mg*, IN718*, HX*, Maraging Steel Grade 300*, more materials to come
